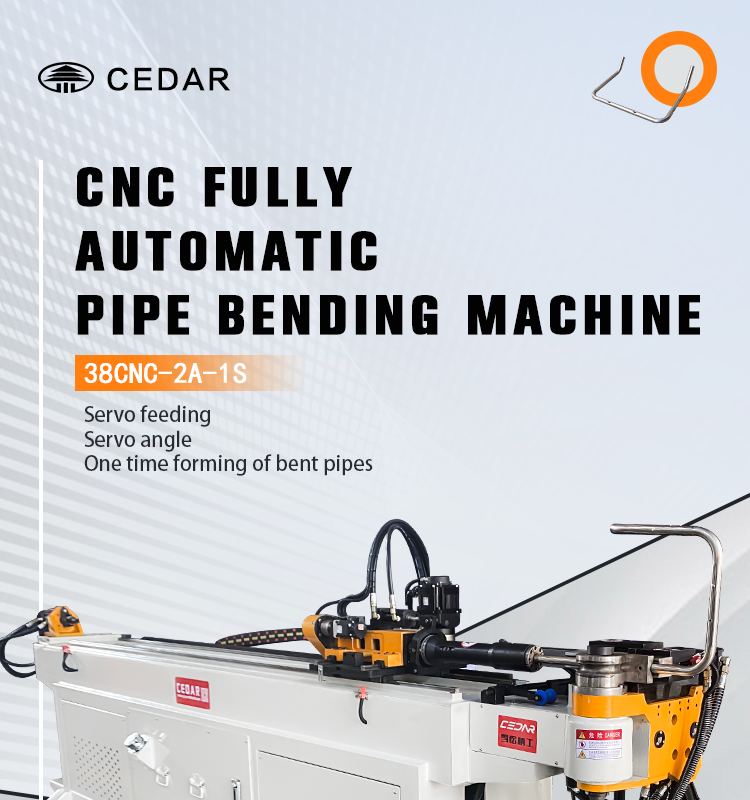

Bending Machine Small Round Nigeria Nc Exhaust 2d Three Roller for Iron Steel Tube Clamp Aluminum Pipe

Name: Bending Machine Small Round Nigeria Nc Exhaust 2d Three Roller for Iron Steel Tube Clamp Aluminum Pipe
Brand: cedar
Price: 1 USD

Quality Bending Machine Small Round Nigeria Nc Exhaust 2d Three Roller for Iron Steel Tube Clamp Aluminum Pipe wholesale

material / metal processed : Alloy, Brass / Copper, Carbon Steel, Stainless Steel, PVC, Aluminum

bending radius (mm) : 15 - 200

max. bending angle (deg) : 190

bending precision (deg) : 0.1

Place of Origin : Jiangsu, China

Brand Name : cedar

automation : Automatic

extra services : Cnc Pipe Bending Machine

power (kw) : 4

weight (kg) : 1800

warranty : 1 Year

key selling points : High-Accuracy

machinery test report : Provided

video outgoing-inspection : Provided

core components : Bearing, Pump, Gear, PLC, Feeding trolley floating structure, Electric control cabinet, IO detection

The oil pump motor : 4.0KW

Machine dimension mm : 4200X900X1300

Feeding accuracy : ±0.1MM

Precision of Angle : ±0.1°

Pipe bending precision : ±0.1°

Maximum square iron tube : 32*1.5mm

Angle servo motor power : 0.75KW

Oil pump motor power : 4.0KW

Feeding servo motor : 1.0KW

Maximum pressure : 12Mpa

Condition : New

Applicable Industries : Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other

Showroom Location : None

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Year : 2024

MOQ : 1 set

Price : $1,750-2,050 / set

Contact Now

project	unit	SB-38CNC4A-2S with bending
Maximum Bending carbon steel pipe (1.5D)	mm	38*3.0
Maximum bending stainless steel tube(2.0D)	mm	32*1.5
The controller	Industrial PC	With 3d motion simulation function
Maximum bending Angle	°	190
Maximum number of molds installed	Set of	2
The number of bends per pipe fitting can be set	A	most36
Maximum feeding length	mm	2500
Maximum bending radius	mm	180
Minimum bending radius	mm	Acuity 1.2 D
Bend servo motor	KW	3/4
Feeding servo motor	KW	1.0
Angular servomotor	KW	4.0
Head translation servo motor power	KW	0.75
reducer	DS	180
Pipe bending precision	°	±0.1
Precision of Angle	°	±0.1
Feeding accuracy	mm	±0.1
Pipe bending speed	Degree/SEC.	80
Corner speed	Degree/SEC.	180
Feeding speed	Mm/SEC.	1000
The oil pump motor	KW	4.0
Maximum pressure	Mpa	12 adjustable
The hydraulic cylinder	Mpa	Maximum 18, inner hole roughness ≤0.4
Fuel tank capacity	KG	250
Machine weight	KG	1500
The machine size	mm	38307601200

FAQ

Choose us

Q: How to quickly choose the most suitable product for you?

A: You can check it on the product page, or contact customer service at +8618021646346 to tell the following details: What machine do you need? The size, thickness, material, and processing requirements of the workpiece, it is best to have a drawing of the workpiece, and we will provide a more professional machine according to your requirements.

Payment method

Q: What are your payment terms?

A: We support T/T, L/C, etc. TT, 30% in advance, and the balance 70% before shipment.

Delivery guarantee

Q: What is the delivery time?

A: Usually in stock, if you need to order fixtures and molds, we usually complete it within 7-15 working days. For customized products, please contact customer service to determine the exact time.

Use guarantee

Q: When I bought this machine, I didn't know how to use it. what do I do?

A: We will send English manuals, installation and operation videos with the equipment. If you still have questions, we can talk via phone, Whatsapp, WeChat and email.

Quality assurance

Q: How to ensure quality?

A: We have factories. We are industry experts and have been operating for more than 10 years. We always adhere to the policy of "high quality, all-round service".

Warranty service

Q: How long is the warranty period?

A: Within one year from the date of leaving the factory, if the part fails or is damaged

(Due to quality problems, wearing parts are excluded), our company provides these parts for free.

Company visit

Q: How do we reach your company?

A: Our company is located in Zhangjiagang City, Jiangsu Province, near Shanghai. You can fly directly to PVG Airport or Shanghai Hongqiao Airport. Welcome to visit our company.
